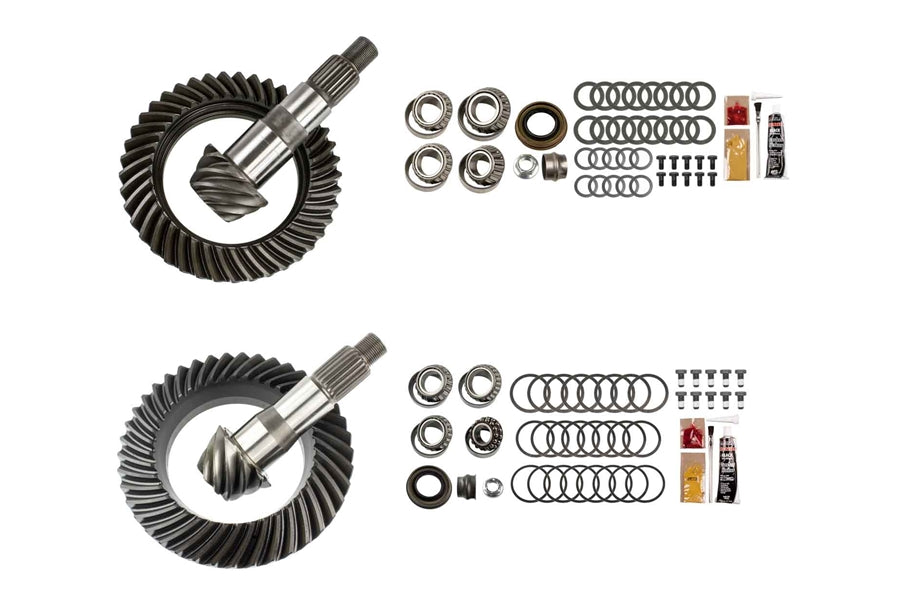

Motive Gear makes it easy to re-gear your 4x4! Motive Gear complete front and rear differential kit includes: front and rear ring and pinions, plus front and rear bearing kits. Everything you need when changing tire size on your off-road vehicle.
Specifications
App Model Dana AdvanTEK M186, Dana AdvanTEK M200, Dana 30 JL Reverse, Dana 35 JL
Cover Bolt Quantity 10 Front, 12 Rear
Differential Carrier Break 3.73 Ratio and Higher Front
Gear Ratio 5.13
Pinion Gear Tooth Quantity 8
Pinion Shaft Diameter 1.375 Front (Inch), 1.63 Rear (Inch)
Pinion Spline Count 24
Ring Gear Bolt Quantity 10
Ring Gear Material 8620 Steel
Ring Gear Outside Diameter 7.125 Front (Inch), 7.88 Rear (Inch)
